LS160W-TS Pump Out Station

• High quality housing made of 316 stainless steel

• Self priming diaphragm pump, can run dry

• Integral high head automatic transfer pump/tank

• Integrated drip tray

• Easy to service and to maintenance due to the fully removable door

• 15m high flexible Suction hose 1 ½“ (38mm)

• Pump-out Probe meets the European standard ISO 8099

• Different control options (Coin, Token, Key or Start/Stop buttons)

• Self priming up to 6m high

• Voltage 400V available

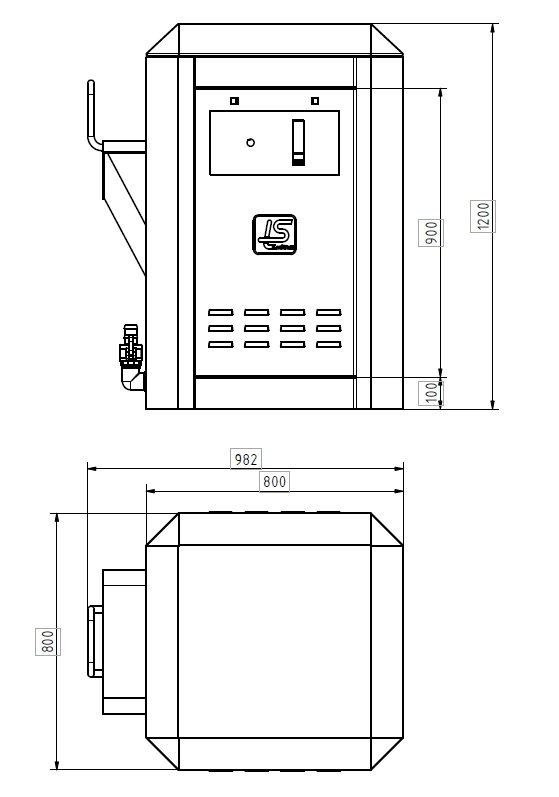

            Dimensions:

         Length total  =  800 mm
         Width  total  =  800 mm + Hose Hanger
         Height  = 1300mm

            Data:

         Capacity                                  60l/min

         Motor Power:                            750W

         Suction height max:                 6m

         Discharge length max:              700m

         Pressure height max:               25m

         Weight:                                  200kg

Only LeeSan truly specialise in toilets, call to speak to our knowledgeable staff.
