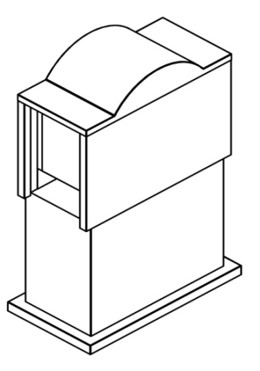

LS1000 Hydraulic Pump Out Station

LS1000 Hydraulic Pump Out Station
Product Information:


  • Stainless Steel Pump housing manufactured in brushed or 3D statically mounted pump unit
  • Provide weather protection and are contructed in heavy duty vandal resistant stainless steel
  • Lockable against unauthorised access, without causing restriction for service
  • Hydraulic operation, security door with safety pressure release or shuttler
  • Choise of control panels, coin, card or token operation
  • Front panel easily removable for major maintanance
  • Saugschlauchlänge 15m
  • motor driven hose recoil unit


        Length  =  1360mm
        Wide  =    750mm
        Height  =  2050mm


        Volume  :  250l/min

        Motor   :  400V/3,6 kW

        Weight  :  250kg

        Suction max  :  9m

        Delivery max:  180m

        Delivery head:  20m

        Connection:  2“ IG

Only LeeSan truly specialise in toilets, call to speak to our knowledgeable staff.

LS1000 Hydraulic Pump Out Station

A full specification of this product will be completed shortly.
